The Magnetic Susceptibility tool is a slim hole mining tool primarily
designed to measure the magnetic susceptibility of the formation.
Additionally, optional natural gamma, inclinometer and magnetometer
sensors.
FEATURES
Properties Measured
1. Natural Gamma: (optional)
2.2 x 10.2 cm (0.875 x 4 in.)
Scintillation Crystal

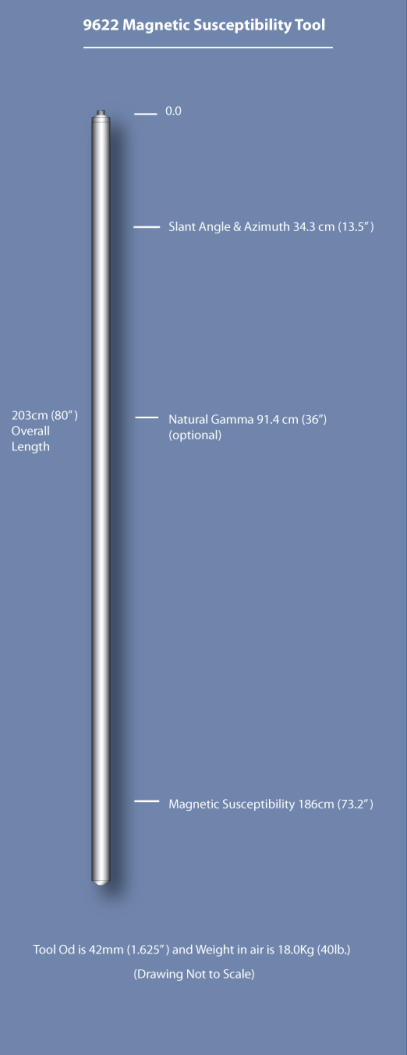

Offset: 91.4 cm (36 in.)
2. Magnetic Susceptibility :
Dual-focused coils, 1.44 kHz
operating frequency
10.2 cm (4 in.) resolution vertically
and horizontally
Offset: 186 cm (73.2 in.)
3. Slant Angle and Azimuth
Measurements:
3-axis magnetometer
2-axis inclinometer
Offset: 34.3 cm (13.5 in.)
Length: 203 cm (80 in.)
Temperature: 70 C (158 F)
Diameter: 4.1 cm (1.63 in.)
Pressure: 253 kg/cm2 (3600 PSI)
Weight: 18 kg (40 lb.)
Logging Speed: 9 m/min. (30 ft./min.)
Tool Voltage Required: 36 VDC
TOOL#: 9622
