The   9074,   8074,   7074   and   6074   Three Arm   Caliper   logging   tools,   are   a   three- arm     caliper     configuration     used     to measure   the   diameter   of   the   borehole. They    can    be    used    in    both    open    and cased   holes.   Natural   Gamma   and   the casing     collar     locator     are     optionally available.      However,   when   configured with     both     the     natural     gamma     and casing   collar   locator   the   tool   is   slightly longer.

Three Arm Caliper Logging Tool

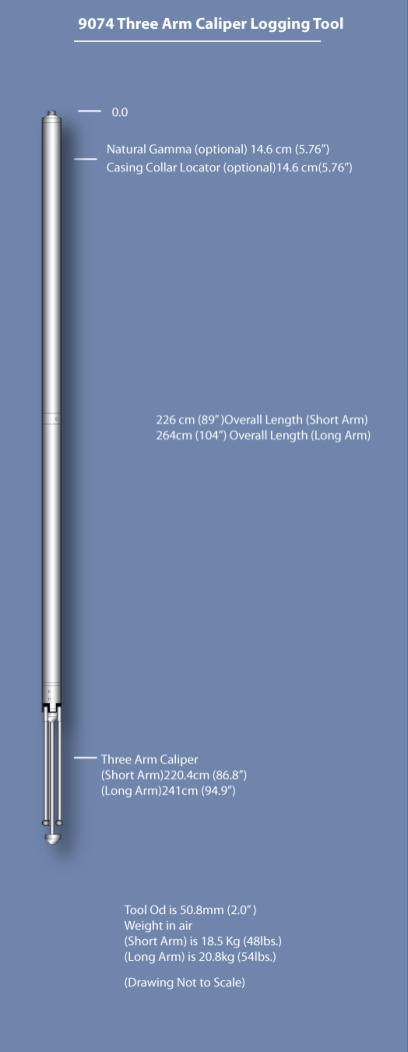

FEATURES Properties Measured 1a.   Natural Gamma: (optional) 2.2 x 10.16 cm (0.875 x 4.0 in.) NaI Scintillation Offset: 14.6 cm (5.76 in.) 1b.   Casing Collar Locator: (optional) Dual magnet and coil assembly Offset: 14.6 cm (5.76 in.) 2.   Three Arm Caliper: Short- or Long- arm configuration, motor operated Sensor Offset: Short-arm: 220.4 cm (86.8 in.) Long-arm: 241.0 cm (94.9 in.)   Tool Length: With Short-arms: 226 cm (89 in.) With Long-arms: 264 cm (104 in.) Temperature: 85 C (185 F) Diameter: 50.8 mm (2.0 in.) Pressure: 281 kg/cm2 (4000 PSI) Weight: Short-arm: 18.5 kg (48 lbs.) Long-arm 20.8 kg (54 lbs.) Logging Speed: 9 m/min. (30 ft./min.) Tool Voltage Required: 56 VDC TOOL#: 9074
