The   Dipmeter   tool   is   a   formation   strike and   dip   directional   probe   primarily   used in    mining    and    environmental    logging applications.   Additionally,    the    tool    also records    natural    gamma,    X-Y    calipers, and     borehole     deviation     is     computed from     the     slant     angle     and     bearing measurements      calculated      from      the inclinometer          and          magnetometer sensors.   To   ensure   accurate   strike   and dip     measurements     in     small-diameter holes,    special    care    should    be    taken when      calibrating      the      calipers      to maximize their accuracy.

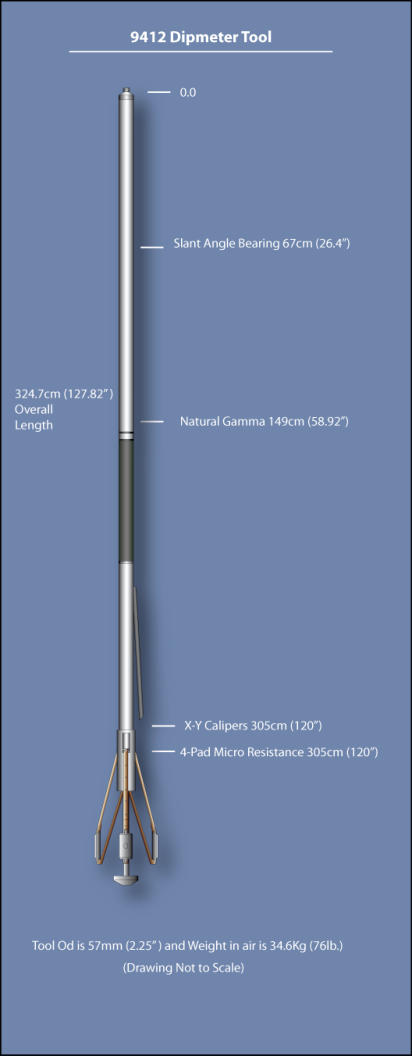

Dipmeter Tool

FEATURES Properties Measured 1.   Natural Gamma: 2.2 x 8.9 cm (0.875 x 3.5 in.) NaI (TI) Scintillation Offset: 14 cm (5.5 in.) 2.   Slant Angle Bearing: Offset: 67 cm (26.4 in.) 3.  Independent X-Y Calipers: Maximum 30 cm (12 in.) Hole Diameter Offset: 305 cm (120 in.) 4.   4-pad Micro Resistance: Offset: 305 cm (120 in.)   Length: 323 cm (127 in.) Temperature: 85 C (185 F) Diameter: 57 mm (2.25 in.) Pressure: 352 kg/cm2 (5000 PSI) Weight: 34.6 kg (76 lb.) Logging Speed: Maximum: 5.5 m/min. (18 ft./min.) Minimum: 2.7 m/min. (9 ft./min.) Tool Voltage Required: 115 VDC   TOOL#:  9411
