Used
when
natural
gamma
log
and
deviation
data
is
required.
The
natural
gamma
sensor
is
located
near
the
bottom
of
the
tool
to
permit
data
acquisition
near
the
total
depth
of
the
borehole.
The
deviation
device
uses
two
inclinometers
and
three
magnetometers
to
determine
precise
borehole
path
and
direction.
The
small
diameter
(41mm/1.625in)
of
the
tool
allows
logging
in
2.0
ID
PVC
casing,
non-metalic
metal
casings,
or
open
holes.
The
deviation
test
stand
is
recommend
for
both
calibration
of
the
device
and
routine
tool
checks
for
accuracy.

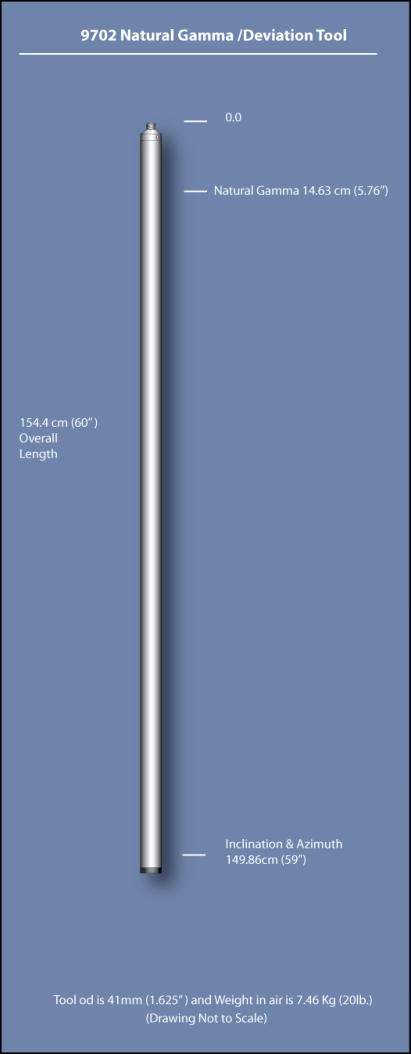

Natural Gamma / Deviation Tool
FEATURES
Properties Measured
1. Natural Gamma:
2.2 x 10.2 cm
(0.875 x 4.0 in.)
NAI Scintillation
Offset: 139.7 cm (55 in.)
2. Inclination & Azimuth:
2-axis Inclinometer and 3-axis
Magnetometer.
Offset: 38.1 cm (15 in.)
Length: 154.4 cm (60.0 in.)
Temperature: 85 C (185 F)
Diameter: 41 mm (1.625 in.)
Pressure: 281 kg/cm2 (4000 PSI)
Weight: 7.46 kg (20 lb.)
Logging Speed: 9 m/min. (30
ft./min.)
Tool Voltage Required: 36 VDC
TOOL#: 9702
