This tool can be used to obtain
1 liter fluid samples downhole
FEATURES
Properties Measured
1. Fluid Sampler:
Sealed sample container, motorized
orifice
1.0 liter (0.26 gal) capacity standard
Offset: 73.7 cm (29.0 in.)
Length: 154.9 cm (61.0 in.)
Temperature: 50 C (122 F)
Diameter: 5.1 cm (2.0 in.)
Pressure: 232 kg.m2 (3000 psi)
Weight: 11.8 kg (26 lbs.)

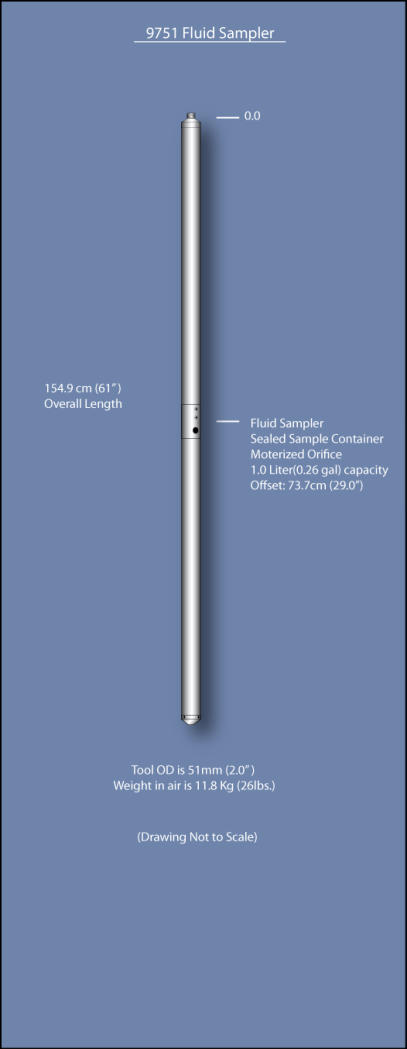

TOOL#: 9751
Fluid Sampler Tool
Turning Data into Information since 1946
This tool can be used to obtain 1 liter fluid
samples downhole
FEATURES
Properties Measured
1. Fluid Sampler:
Sealed sample container, motorized orifice
1.0 liter (0.26 gal) capacity standard
Offset: 73.7 cm (29.0 in.)
Length: 154.9 cm (61.0 in.)
Temperature: 50 C (122 F)
Diameter: 5.1 cm (2.0 in.)
Pressure: 232 kg.m2 (3000 psi)
Weight: 11.8 kg (26 lbs.)
TOOL#: 9751
Fluid Sampler Tool
