The Multi-Parameter Sidewall Density Logging Tool contains a
single detector, focused density system using a 200-300 mCi
Cesium 137 source, to record apparent bulk density of the
formation. Additionally, the tool also records natural gamma, caliper,
and a medium guard resistivity, and comes standard with a short arm
and long arm.

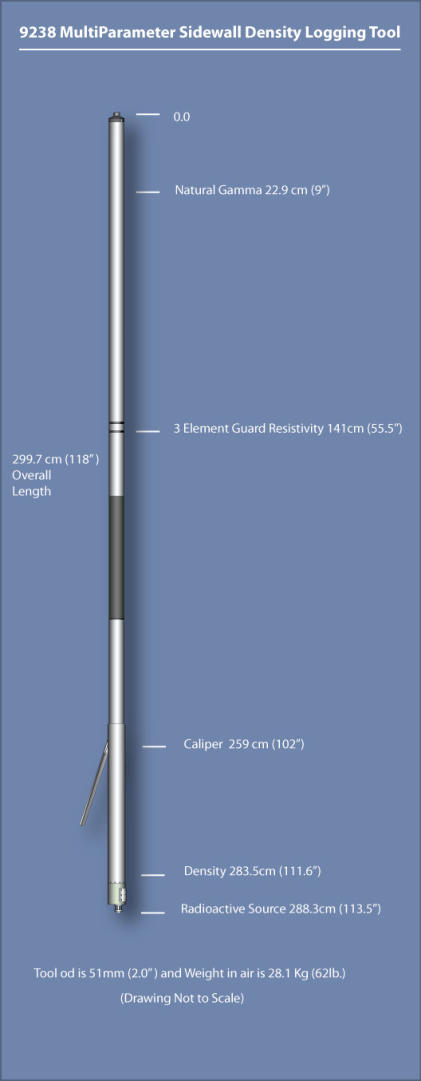

FEATURES
Properties Measured
1. Natural Gamma:
2.2 x 10.16 cm (0.875 x4.0 in.)
NAI Scintillation
Offset: 45.7 cm (18 in.)
2. 3-Element Guard Resistivity:
101.6 mm (4 in.) center electrode, 141 cm
(55.5 in.)
Offset: 72.3 cm (28.5 in.)
3. Caliper:
Motorized, uphole actuated
Offset: 259 cm (102 in.)
4. Density:
1.27 x 3.81 cm (0.5 x 1.5 in.)
NAI focused scintillation
Offset: 283.5 cm (111.6 in.)
Source-to-detector spacing
selectable between 19.1 cm
(7.5 in.) or 95.cm (3.75 in.)
5. Radioactive source:
200 mCi Cesium 137 in bullplug
Offset: 288.3 cm (113.5 in.)
Length: 299.7 cm (118 in.)
Temperature: 75 C (167 F)
Diameter: 51 mm (2.0 in.)
Pressure: 175 kg/cm2 (2500 PSI)
Weight: 28.1 kg (62 lb.)
Logging Speed: 9 m/min. (30 ft./min.)
Tool Voltage Required: 56 VDC
TOOL#: 9238
